Pitfalls of Isolation Levels in Distributed Databases

October 14, 2020
Sugu Sougoumarane

The more loosely coupled components are in a distributed system, the better it scales. This rule applies to distributed databases, too, and the isolation level plays a big part in this. This post attempts to explain what these isolation levels mean and the tradeoffs between them. We also give you recommendations on how to choose the isolation level best suited to your needs.

There exists a set of ANSI Standards for isolation. There is also a critique about those standards explaining the ambiguities in them. These explanations are interesting for those who are passionate about databases and transactions, but this level of understanding is not required to use a database.

In this post, we are going to cover the minimum knowledge required to use isolation levels effectively. To achieve this, we are going to study two use cases that are representative of most applications and look at their effects with respect to different isolation levels.

Case A: Bank

A customer withdraws money from a bank account:

  • Begin Transaction
  • Read the user’s balance
  • Create a row in the activity table (we want to avoid calling this a transaction to prevent confusion with database transactions)
  • Update the user’s balance after subtracting the withdrawal amount from the amount read
  • Commit

We do not want the user’s balance to change until the transaction completes.

Case B: Retail

An international customer buys an item from a retail store using a currency that is different from the list price:

  • Begin Transaction
  • Read the exchange_rate table to obtain the latest conversion rate
  • Create a row in the order table
  • Commit

We assume that a separate process is continuously updating the exchange rates, but we do not care if an exchange rate changes after we have read it, even if the current transaction has not completed yet.

Serializable

The Serializable isolation level is the only one that satisfies the theoretical definition of the ACID property. It essentially states that two concurrent transactions are not allowed to interfere with each other’s changes, and must yield the same result if executed one after the other.

Unfortunately, Serializable is generally considered to be impractical, even for a non-distributed database. It is not a coincidence that all the existing popular databases like Postgres and MySQL recommend against it.

Why is this setting so impractical? Let us take the two use cases:

In the Bank use case, Serializable is perfect. After we have read a user’s balance, the database guarantees that the user’s balance will not change. So, it is safe for us to apply business logic such as ensuring that the user has sufficient balance, and then finally writing the new balance based on the value we have read.

In the Retail use case, Serializable will also work correctly. However, the process that updates the exchange rates will not be allowed to perform its action until the transaction that creates the order succeeds.

This may sound like a great feature at first glance, because of the clear sequencing of events. However, what if the transaction that created orders was slow and complex? Maybe it has to call out into warehouses to check inventory. Maybe it has to perform credit checks on the user placing the order. During all this time, it is going to hold the lock on that row, preventing the exchange rate process from updating it. This possibly unintended dependency may prevent the system from scaling.

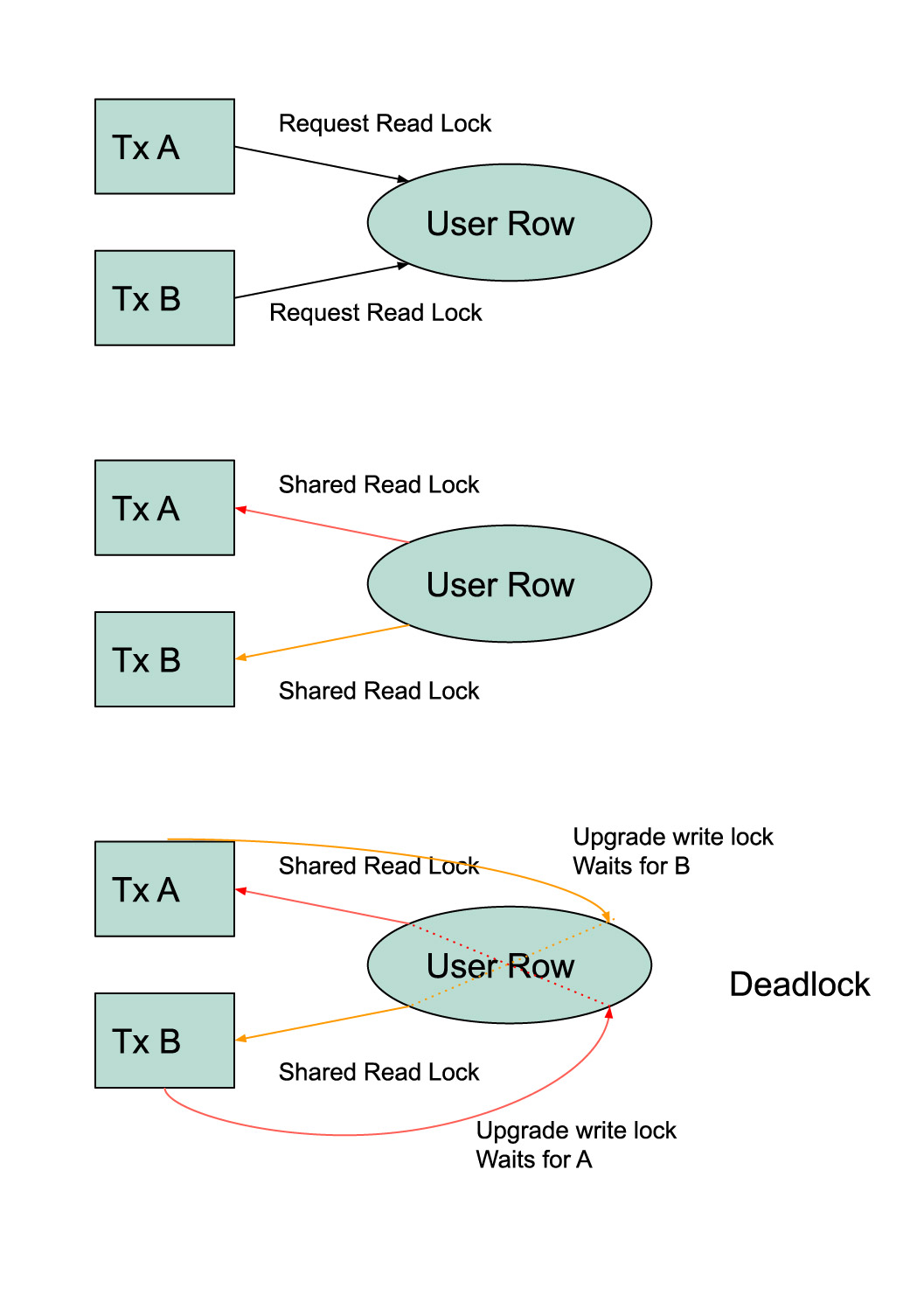

A Serializable setting is also subject to frequent deadlocks. For example, if two transactions read a user’s balance, they will both place a shared read lock on the row. If the transactions later try to modify that row, they will each try to upgrade the read lock to a write lock. This will result in a deadlock because each transaction will be blocked by the read lock held by the other transaction. As we will see below, other isolation levels can easily avoid this problem.


In other words, a contentious workload will fail to scale if using a Serializable setting. What if the workload was not contentious? In that case, we did not need this isolation level at all. A lower isolation could have worked equally well.

To work around this unnecessary and expensive safety, the application has to be refactored. For example, the code that obtains the exchange rate may have to be called before the transaction is started, or the read may have to be done using a separate connection.

The other isolation levels, although not as theoretically pure, allow you to perform Serializable reads on a case-by-case basis. This makes them more flexible and practical for writing scalable systems.

Lock Free Implementations

There are ways to provide Serializable consistency without locking data. However, such systems are subject to the same problems described above; conflicting transactions just end up failing differently. The root cause of the problem is in the isolation level itself, and no implementation can get you out of those constraints.

RepeatableRead

The RepeatableRead setting is an ambiguous one. This is because it differentiates point selects from searches, and defines different behaviors for each. This is not black and white, and has led to many different implementations. We will not go into the details of this isolation level. However, as far as our use cases are concerned, RepeatableRead offers the same guarantees as Serializable and consequently inherits the same problems.

SnapshotRead

The SnapshotRead isolation level, although not an ANSI standard, has been gaining popularity. This is also known as MVCC. The advantage of this isolation level is that it is contention-free: it creates a snapshot at the beginning of the transaction. All reads are sent to that snapshot without obtaining any locks. But writes follow the rules of strict Serializability.

A SnapshotRead transaction is most valuable for a read-only workload because you get to see a consistent snapshot of the database. This avoids surprises while loading different pieces of data that depend on each other transactionally. You can also use the snapshot feature to read multiple tables as of a certain time, and then later observe the changes that have occurred since that snapshot. This functionality is convenient for Change Data Capture tools that want to stream changes out to an analytics database.

For transactions that perform writes, the snapshot feature is not that useful. What you mainly want to control is whether to allow a value to change after the last read. If you want to allow the value to change, then it is going to be stale as soon as you read it because someone else can update it later. So, it doesn’t matter if you read from a snapshot or get the latest value. If you do not want it to change, you want the latest value, and the row must be locked to prevent changes.

In other words, SnapshotRead is useful for read-only workloads, but it is no better than ReadCommitted for write workloads, which we will cover next.

Re-applying the Retail use case in this isolation level works naturally without creating contention: The read from the exchange rate yields a value that was as of the snapshot when the transaction was created. While this transaction is in progress, a separate transaction is allowed to update the exchange rate.

What about the Bank use case? Databases allow you to place locks on data. For example, MySQL allows you to “select… lock in share mode” (read lock). This mode upgrades the read to that of a Serializable transaction. Of course, you also inherit the inherent deadlock risks of this isolation level.

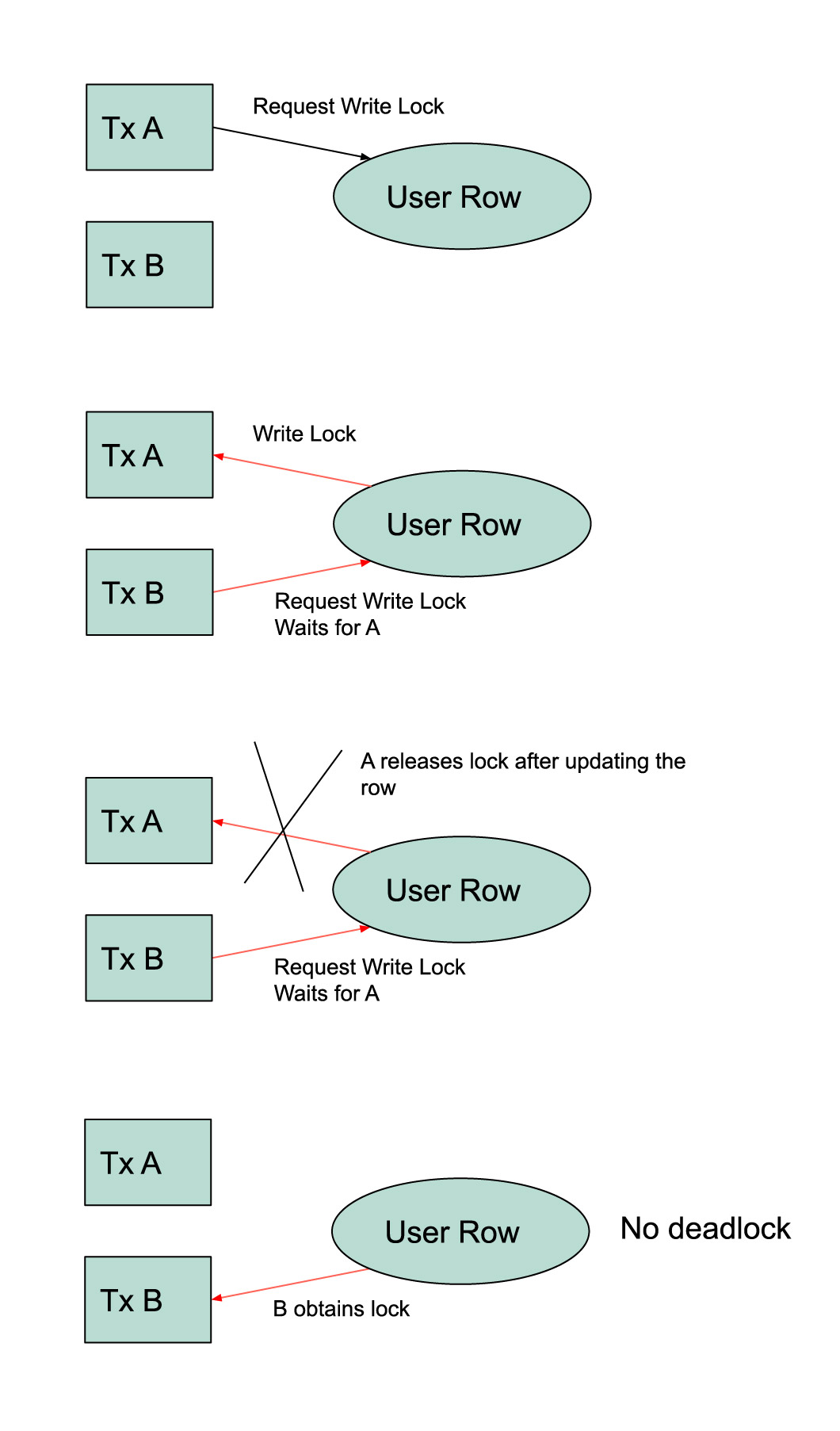

In other words, a lower isolation level offers you the best of both worlds. But it gets better: you also have the option of issuing a “select… for update” (write lock). This lock prevents another transaction from obtaining any kind of lock on this row. This approach of pessimistic locking sounds worse at first, but will allow two racing transactions to successfully complete without encountering a deadlock. The second transaction will wait for the first transaction to complete, at which point it will read and lock the row as of the new value.


MySQL supports the SnapshotRead isolation level by default, but misleadingly calls it REPEATABLE_READ.

Distributed databases

Although a single database has many ways of implementing Repeatable Reads efficiently, the problem becomes more complex in the case of distributed databases. This is because transactions can span multiple shards. If so, a strict ordering guarantee must be provided by the system. Such ordering either requires the system to use a centralized concurrency control mechanism or a globally consistent clock. Both these approaches essentially attempt to tightly couple events that could have otherwise executed independent of each other.

Therefore, one must understand and be willing to accept these trade-offs before wanting a distributed database to support distributed Snapshot Reads.

ReadCommitted

The ReadCommitted isolation is less ambiguous than SnapshotRead because it continuously returns the latest view of the database. This is also the least contentious of the isolation levels. At this level, you may get a different value every time you read a row.

The ReadCommitted setting also allows you to upgrade your read by issuing a read or write lock, effectively providing you with the ability to perform on-demand Serializable reads. As explained previously, this approach gives you the best of both worlds for application transactions that intend to modify data.

The default isolation level supported by Postgres is ReadCommitted.

ReadUncommitted

This isolation level is generally considered unsafe and is not recommended for distributed or non-distributed settings. This is because you may read data that might have later been rolled back (or never existed in the first place).

Distributed Transactions

This topic is orthogonal to isolation levels, but it is important to cover this here because it has significance when it comes to keeping things loosely coupled.

In a distributed system, if two rows are in different shards or databases, and you want to atomically modify them in a single transaction, you incur the overhead of a two-phase commit (2PC). This requires substantially more work:

  • Metadata about the distributed transaction is created and saved to durable storage.
  • A prepare is issued to all individual transactions.
  • A decision to commit is saved to the metadata.
  • A commit is issued to the prepared transactions.

A prepare requires you to save metadata so the transaction can be resurrected in the new leader if a node crashes before a commit (or rollback).

A distributed transaction also interacts with the isolation level. For example, let us assume that only the first commit of a 2PC transaction has succeeded and the second commit is delayed. If the application has read the effects of the first commit, then the database must prevent the application from reading the rows of the second commit until completion. Flipping this around, if the application has read a row before the second commit, then it must not see the effects of the first commit.

The database has to do additional work to support the isolation guarantees for distributed transactions. What if the application could tolerate these partial commits? Then we are doing unnecessary work that the application doesn’t care about. It may be worth introducing a new isolation level like ReadPartialCommits. Note that this is different from ReadUncommitted where you may read data that may eventually be rolled back.

Lastly, excessive use of 2PC reduces the overall availability and latency of a system. This is because your effective availability will be dictated by the worst performing shard.

Conclusion

To be scalable, an application should avoid relying on any advanced isolation features of a database. It should instead try to use as few of the guarantees as it can. If you can write an application to work with ReadCommitted isolation level, then moving to  SnapshotRead should be discouraged. Serializable or RepeatableRead are almost always a bad idea.

It is also better to avoid multi-statement transactions if possible. However, as the application evolves, this need may become unavoidable. At that point, try mainly relying on the atomic guarantees of transactions, and stay at the lowest isolation level the database system supports.

If using a sharded database, avoid distributed transactions. This can be achieved by keeping related rows within the same shard.

These recommendations may conflict  with the general advice of not prematurely optimizing your program, but  this case is different. This is something that one must do from the beginning, because it is very hard to refactor a non-concurrent program to be concurrent.
